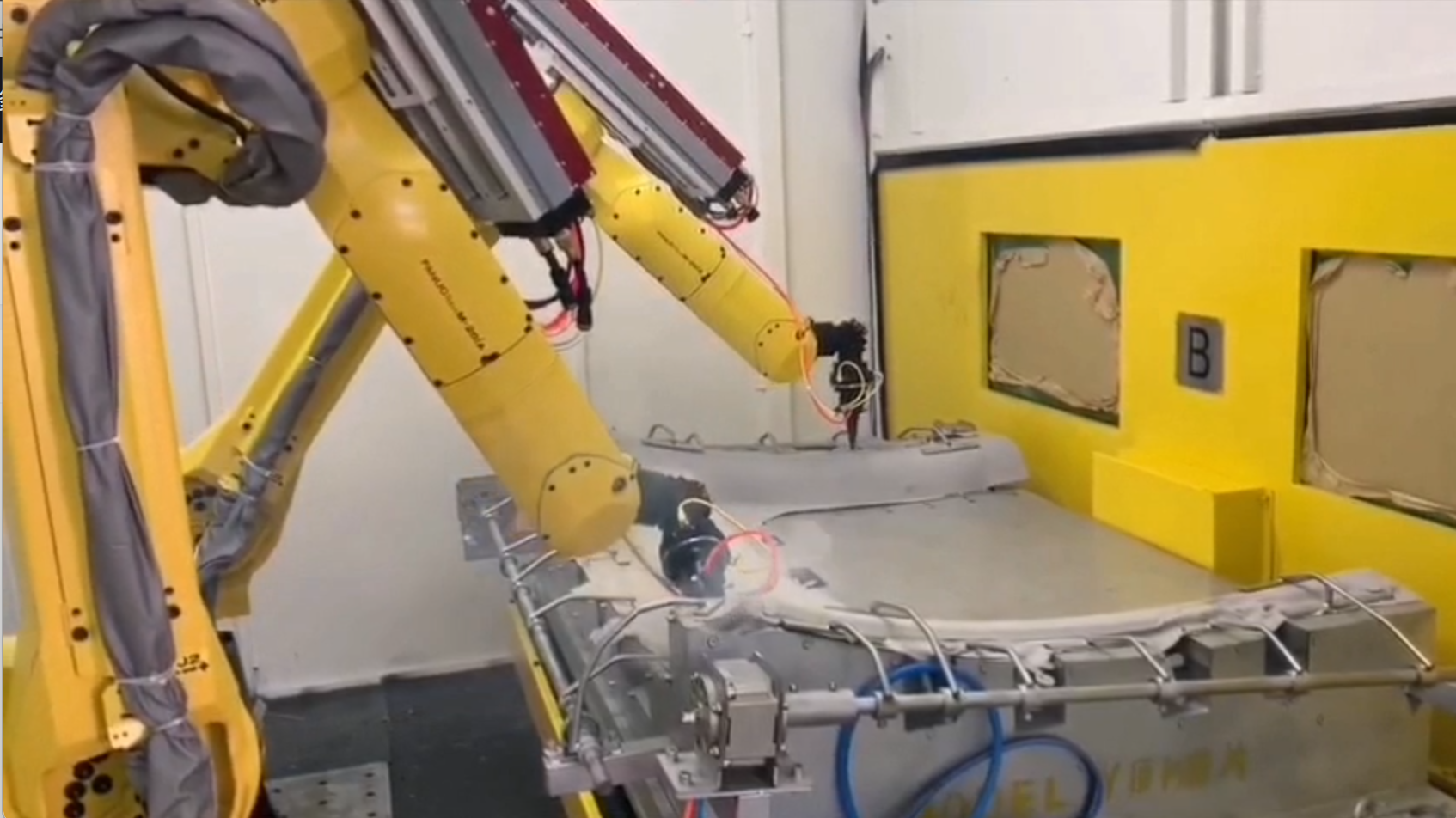

The robotic laser cutting system is a high-end, flexible processing equipment integrating 6-axis robotic linkage, fiber laser technology, and intelligent control systems. By deeply integrating high-precision industrial robots (such as FANUC, ABB, Yaskawa, etc.) with high-performance fiber lasers and 3D laser cutting heads, the system achieves multi-angle, multi-directional high-precision 3D cutting for sheet metals, tubes, and complex profile workpieces. Benefiting from its highly flexible engineering design and intelligent control capabilities, this system is widely utilized in automotive manufacturing, machinery processing, shipbuilding, and precision sheet metal fabrication.

Key Advantages
Flexible 3D cutting in three‑dimensional space
High precision and high stability
Efficient automated processing
Intelligent operation with user‑friendly interface
Flexible production with fast changeover

Technical Specifications
Laser power: 1.5 kW – 20 kW (customizable)
Robot axes: 6 axes
Robot repeat positioning accuracy: ±0.02 mm
Cutting path accuracy: ±0.1 mm
Maximum cutting speed: 15 m/min
Maximum cutting thickness: ≤16 mm (power‑dependent)
Robot reach: 1853 mm (other options available)
